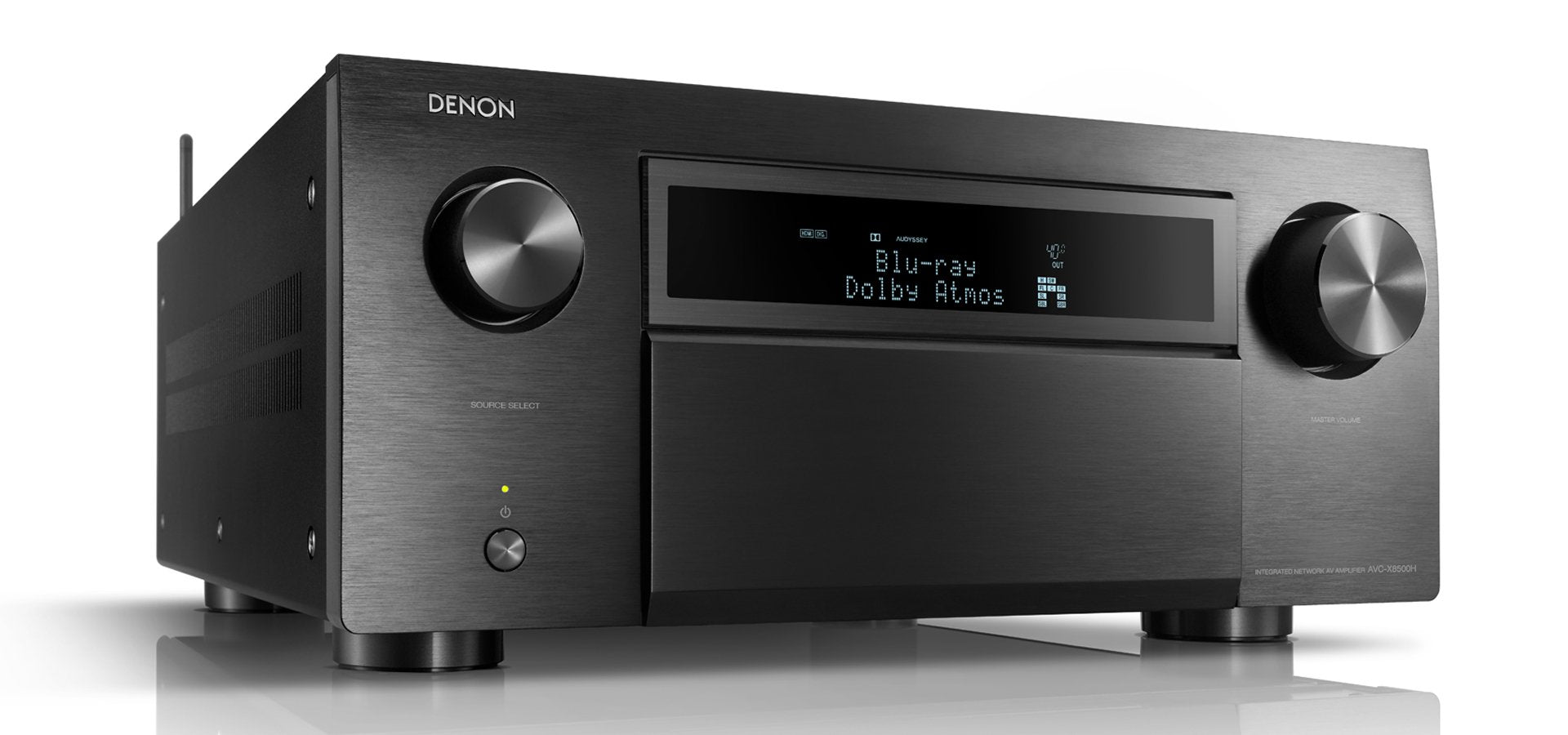

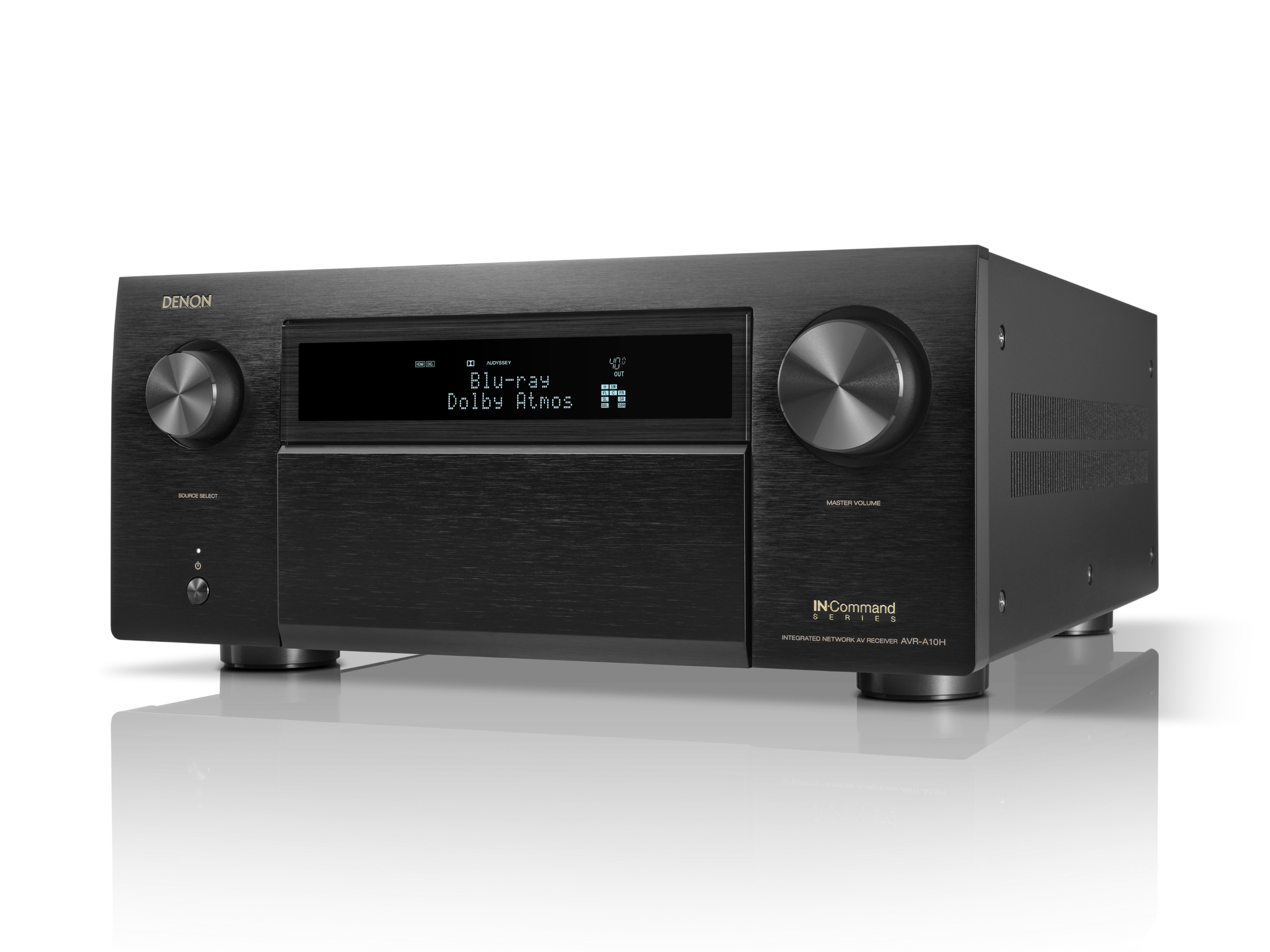

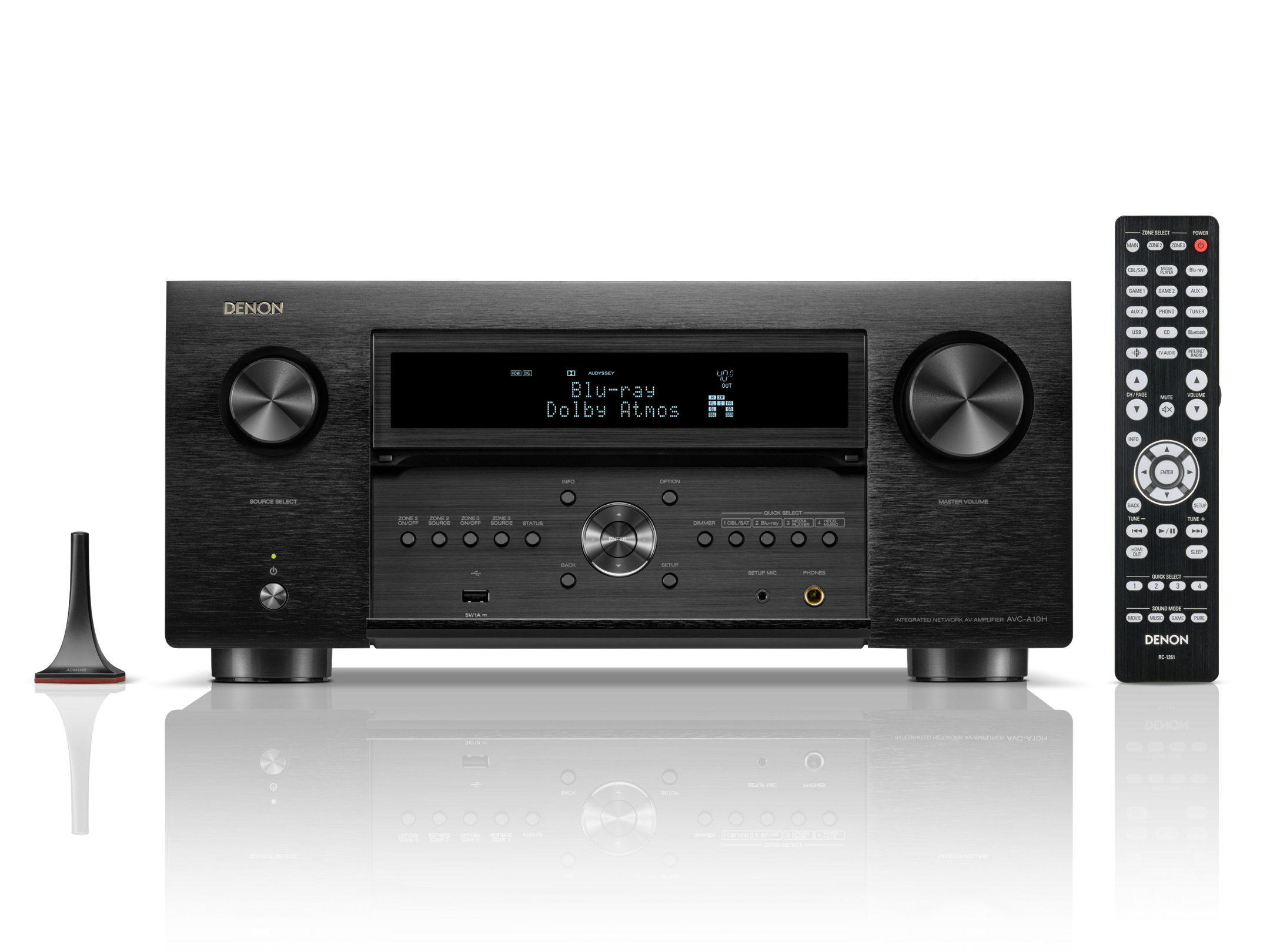

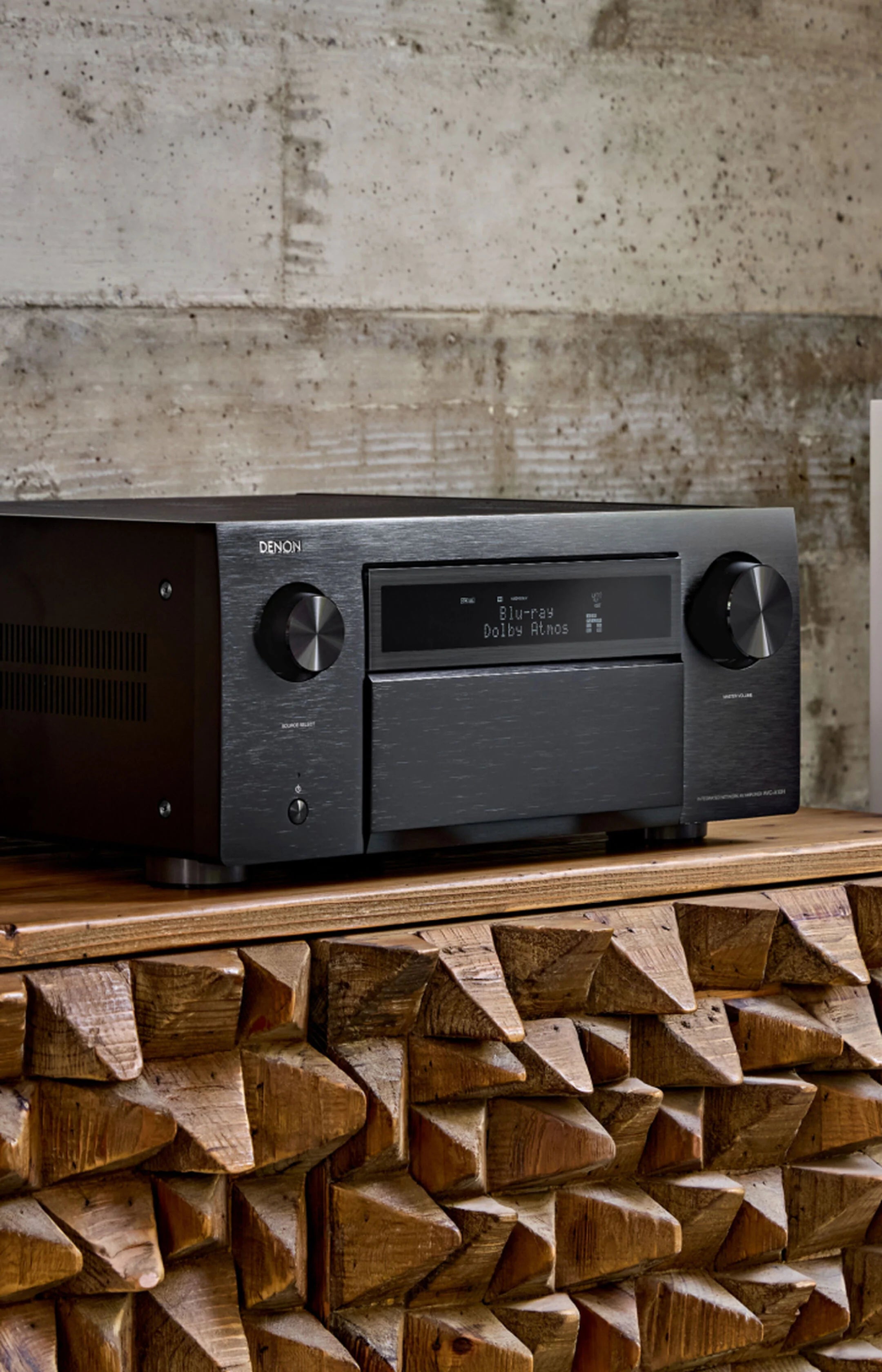

Denon AVC-A10H 13.4-Ch 150W 8K AV Receiver with HEOS® Built-in
The Denon A-Series line stands for the very best that Denon has to offer. Built on more than 110 years of industry-leading innovation, products with the A-Series designation represent the pinnacle of quality.
HIGHLIGHTS
Robust 13.4 channel amplifier.

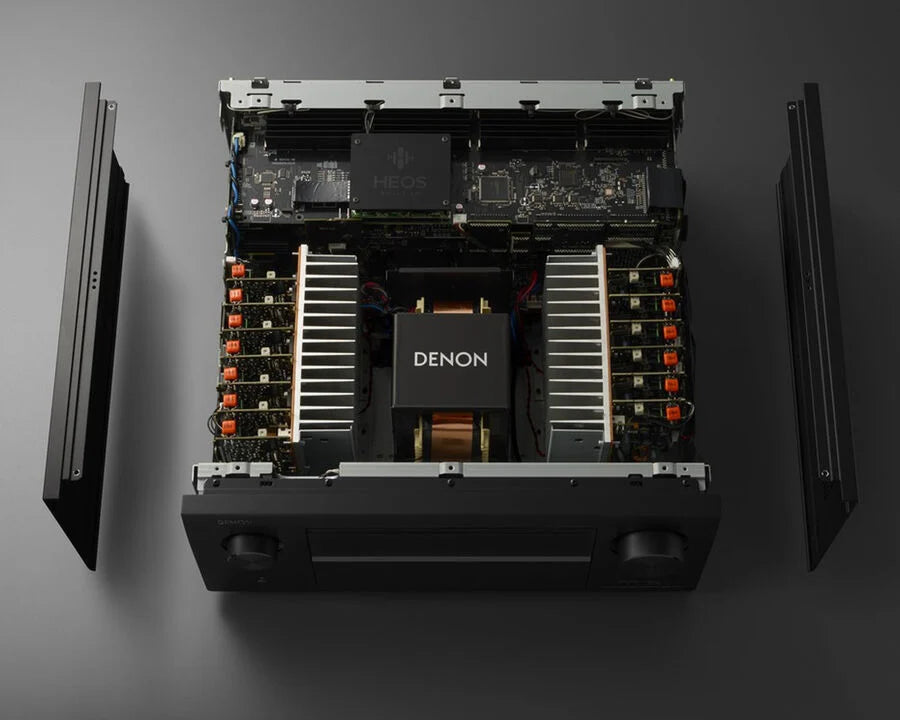

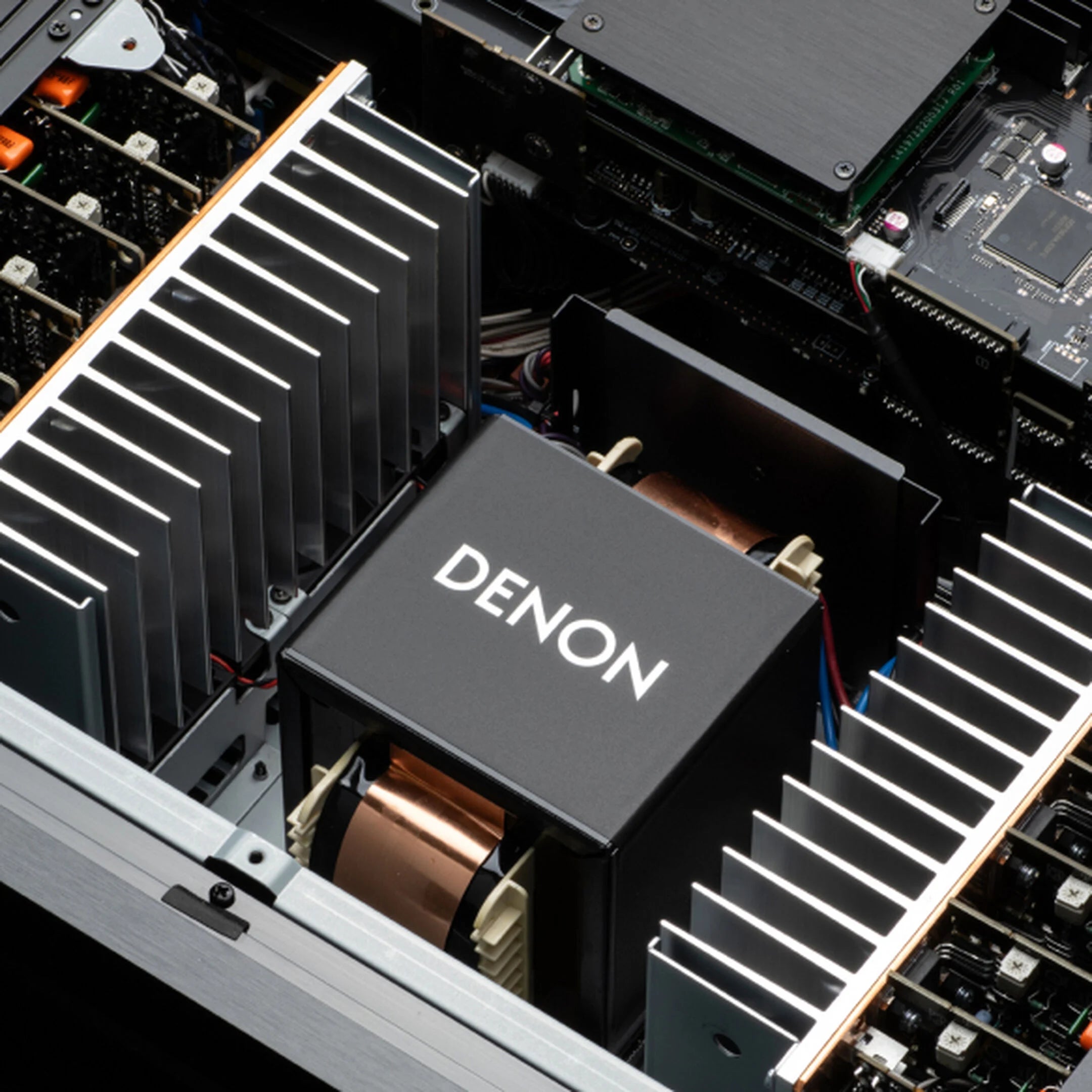

The AVC-A10H’s 13-channel monolithic amplifier delivers 150 watts per channel. As is typical in high-end amplifier designs, each channel is built on its own PCB to minimize crosstalk and distortion.
State-of-the-art home theatre.
All seven HDMI inputs support the highest resolution and fastest frame rates available. The AVC-A10H can pass-through signals up to 8K/60Hz or 4K/120Hz frame rates in gaming scenarios.
Immersive 3D sound.
13.4-channel processing powers systems up to 7.4.6 or 9.4.4 speaker configurations with support for Dolby Atmos, DTS:X Pro, IMAX Enhanced, AURO-3D, and more.
Next-generation gaming compatibility.
With the latest HDMI specification, each HDMI port supports 4K/120Hz which means your video frame rate increases so you can always see who is coming around the corner.
Hi-fi quality, inside and out.
Nine audiophile-grade 2-channel DACs maximize resolution for all 17 channels. Premium
gold-plated speaker terminals and a rigid, three-layer chassis protect against vibration and interference, significantly reducing noise.
HEOS Built-in.
Stream music wirelessly from a variety of free and premium streaming services.
Share content to HEOS-enabled devices, like Denon Home speakers, in other rooms.
Audyssey room correction.
Audyssey room correction optimizes your system’s sound for any space. Upgrade to the
Audyssey MultEQ editor app or MultEQ-X PC software (fee required) for advanced control.
Dirac Live upgradability for acoustic optimization.
Dirac Live® Room Correction applies state-of-the-art, patented algorithms to digitally analyse and minimize room impact and optimize speaker performance.
Engineered and built in Japan.
Designed and manufactured in Denon's Shirakawa factory in Japan, the AVC-A10H
was tuned by the Denon Sound Master to provide the truest sonic reproduction.
Dolby Atmos®.
Unleash a fully immersive 3D audio experience from Dolby Atmos
content starting from a 5.1.2 speaker setup. Dolby Surround upmixer
engages all speakers to create 3D audio sensation from legacy
content. Dolby Atmos Height Virtualization Technology creates the
sensation of overhead sound even without a 5.1.2 system.
You can also enjoy Dolby Atmos music tracks available from
Apple Music, Amazon HD, and TIDAL through a compatible
streaming device.
DTS:X.
DTS:X immersive audio content places sound where it would
naturally occur in space, creating life-like, multi-dimensional
audio. DTS Neural:X upmixer offers improved immersion and
heightened realism for legacy content. DTS Virtual:X provides
immersive audio without height channels.
IMAX Enhanced.
IMAX Enhanced is the latest technology from DTS that sets a new
standard. See clearer and brighter picture, feel immersive lifelike
audio, and experience premium content digitally remastered by IMAX.
Auro 3D.
Auro 3D elevates the home theatre experience to amazing new
levels by delivering the excitement of 3D sound for music, games,
broadcast, and films, thanks to the Auro-Matic upmixing engine.
360 Reality Audio.
360 Reality Audio is a new immersive music experience that uses
Sony‘s 360 Spatial Sound technology to place individual sounds
such as voices and instruments in a 360 degree spherical sound field.
High-resolution audio support.
Discover the incredible fidelity of high-resolution audio tracks and
enjoy music as the artist intended. A front USB port supports up to
24bit/192kHz hi-res audio playback from a USB drive. Supported
audio formats are MP3, WMA, WAV, MPEG- 4/AAC, FLAC, and ALAC.
AirPlay 2 and Apple Siri Voice Control.
Stream audio from your favourite music services like Apple
Music and Spotify or watch videos from services like YouTube
and Netflix from any iPhone, iPad, Mac or Apple TV. Hear audio
perfectly synced to your speakers from AirPlay 2 sources. AirPlay
2 also supports multiroom audio—wirelessly stream content
to multiple AirPlay 2 compatible devices simultaneously with
improved audio buffering to ensure smooth audio playback.
AirPlay 2 provides control and grouping of compatible audio
devices within the Apple Music or Home app. Use AirPlay 2 inapp
or with your voice via Siri.
High-resolution audio.
Discover the incredible fidelity of high-resolution audio tracks and
enjoy music as the artist intended. A front USB port supports up to
24bit/192kHz hi-res audio playback from a USB drive. Supported
audio formats are MP3, WMA, WAV, MPEG- 4/AAC, FLAC, and ALAC.
HDMI Connectivity with ARC/eARC.
Supports the latest technology on all HDMI inputs and output. ARC
(Audio Return Channel) or eARC (Enhanced Audio Return Channel)
makes playing TV audio through your AV receiver simple, with a
single HDMI connection.
eARC provides HD and 3D audio transmissions such as Dolby
TrueHD, DTS HD Master Audio, and Dolby Atmos while ARC is
limited to conventional 5.1ch audio formats or PCM.
8K/HDCP 2.3.
Enjoy pristine 8K picture quality on your 8K TV or projector. Supports
both 8K pass-through and 8K upscaling of 4K content. Supports
HDCP 2.3, the latest copy protection standard, for peace of mind
when streaming copy-protected content.
Brilliant colour from HDR 10+.
Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma),
as well as Dynamic HDR and HDR10+ pass-through. HLG offers
HDR technology over broadcast content. Both Dynamic HDR and
HDR10+ use dynamic metadata to optimize shadows and highlights
as screens change.
Dolby Vision.
Dolby Vision is a stunning HDR imaging technology that brings
extraordinary color, contrast, and brightness to the screen.
Compatible with Dolby Vision so you can enjoy Dolby Vision content
from a compatible source device and TV.
Next-generation gaming.
Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT),
and Auto Low Latency Mode (ALLM) for smooth, lag-free gaming
experience when connected with compatible gaming devices.
HEOS® Built-in.
With HEOS Built-in, your AV receiver can stream music wirelessly
across compatible HEOS components from a variety of free and
premium streaming services. Consumers can also enjoy their
favorite music in any room of the home wirelessly. Play the same
song in every room or select a different song for each connected
room via a variety of streaming sources. Add Denon Home speakers
to more rooms and control it all with the HEOS app.
Denon Setup Assistant.
Award-winning guided Denon Setup Assistant provides simple,
clear instructions to get started. Just connect your AV receiver to
your TV and follow the instructions on the TV screen to connect
your speakers, perform speaker measurements, and connect source
devices. For additional convenience, the AV receiver renames HDMI
inputs automatically when connected, or you can rename manually
at your convenience.
Audyssey MultEQ XT32.
Advanced frequency response correction and filtering provide
a more balanced soundstage. Improved microphone technology
offers a more accurate experience tailored to your unique
acoustic environment.
Dirac Live Upgradability.
The interaction between your sound system and the physical
layout of your room has a huge impact on sound quality. Dirac Live®
Room Correction applies state-of-the-art, patented algorithms
to analyse and digitally reduce room impact and enhance
speaker performance.
Pre-Amplifier Mode.
Pre-Amplifier Mode lets your Denon act as an AV preamp with the
latest HDMI connectivity, providing a cleaner signal path and more
tolerance in clipping level by disconnecting internal amplifiers.
Technical Information.
Number of Power Amps 13
Power Output
150 watts per channel
(8 ohm, 20Hz - 20kHz,
0.05% 2ch Drive)
190 watts per channel
(6 ohm, 1kHz, 0.7% 2ch Drive)
190 watts per channel
(6 ohm, 1kHz, 1% 1ch Drive)
210 watts per channel
(6 ohm, 1kHz,10% 1ch Drive)
Other
Auto Speaker Setup
by Microphone Audyssey MultEQ XT32
Front Display 2 Lines FLD
GUI Languages 9

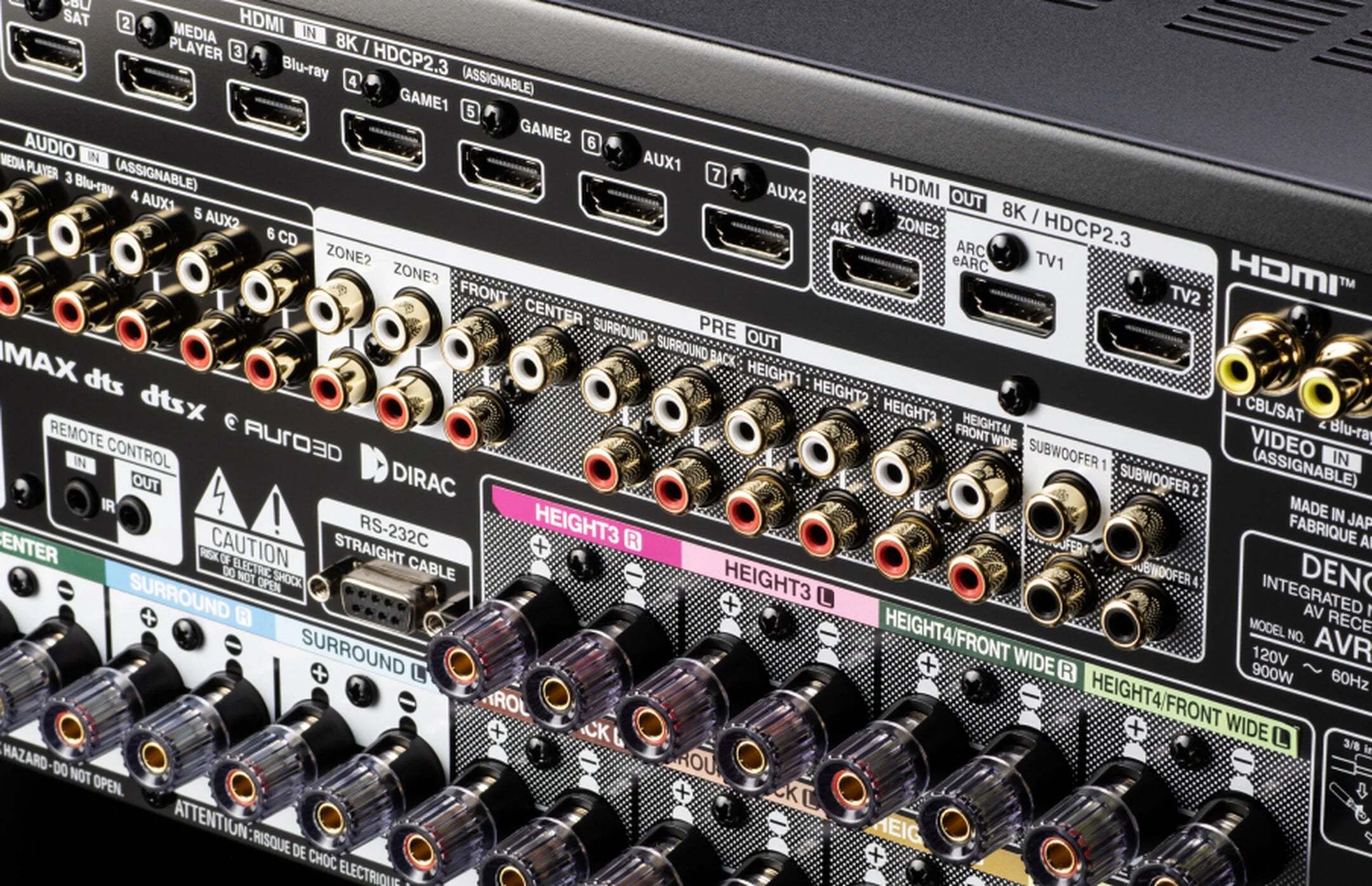

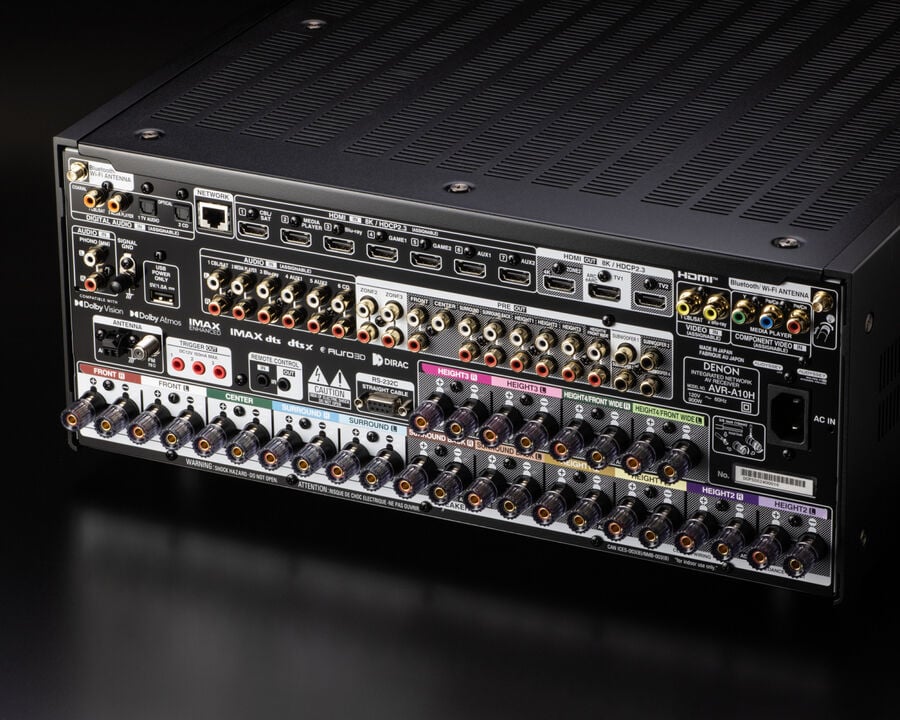

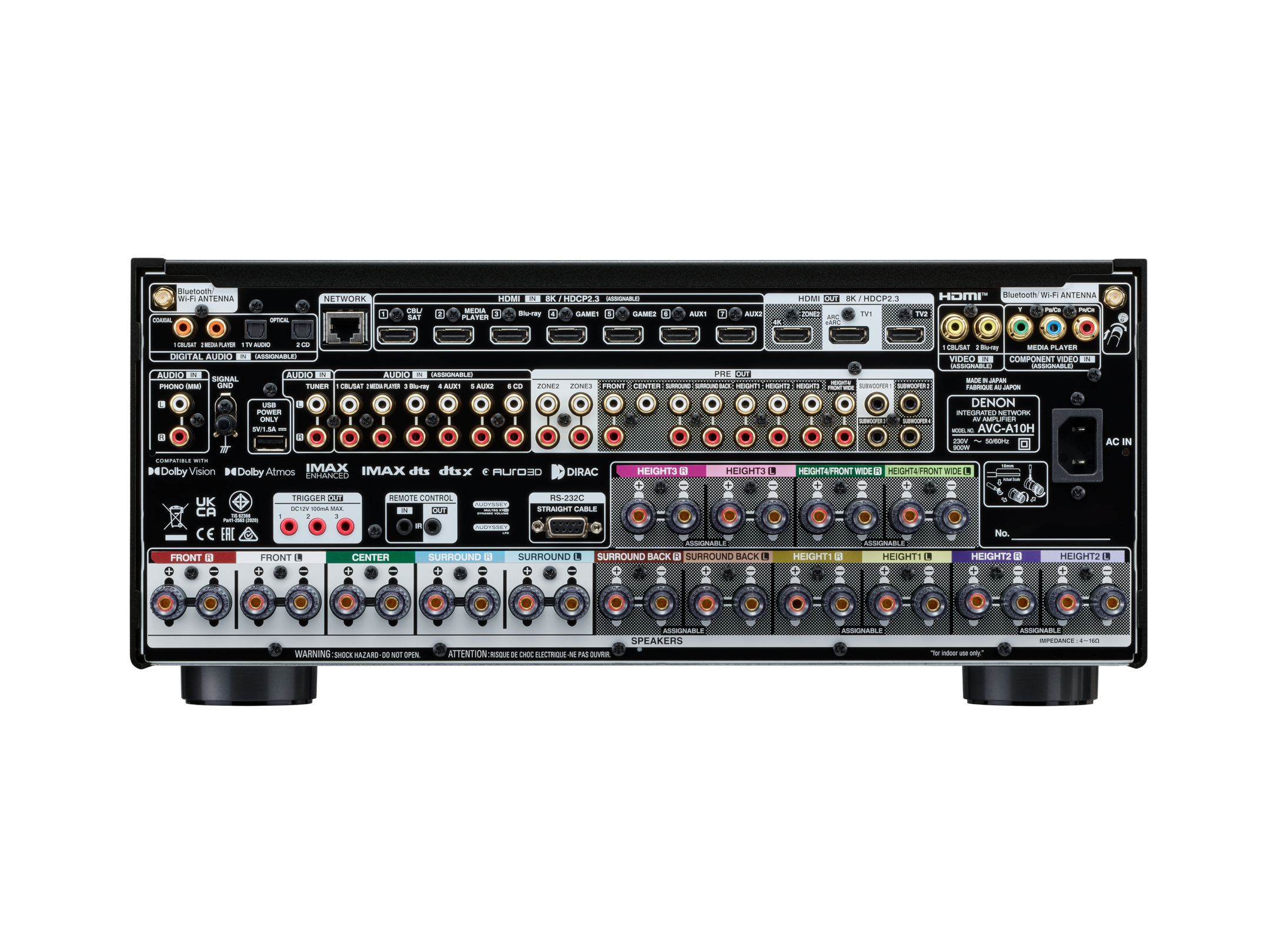

Inputs/Outputs.
Video
HDMI In/Out 7/3
Audio
Analog In/Out 7+1 / 0
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: Analog / Digital 2 / 0
Multichannel Pre-Out Yes (15.4)
Subwoofer Out 4 (independent)
Other
Number of Speaker Terminals 15
Speaker A/B Assignable
Bi-Amp Drive Assignable
Multi-Room Speaker Terminal Assignable
General.

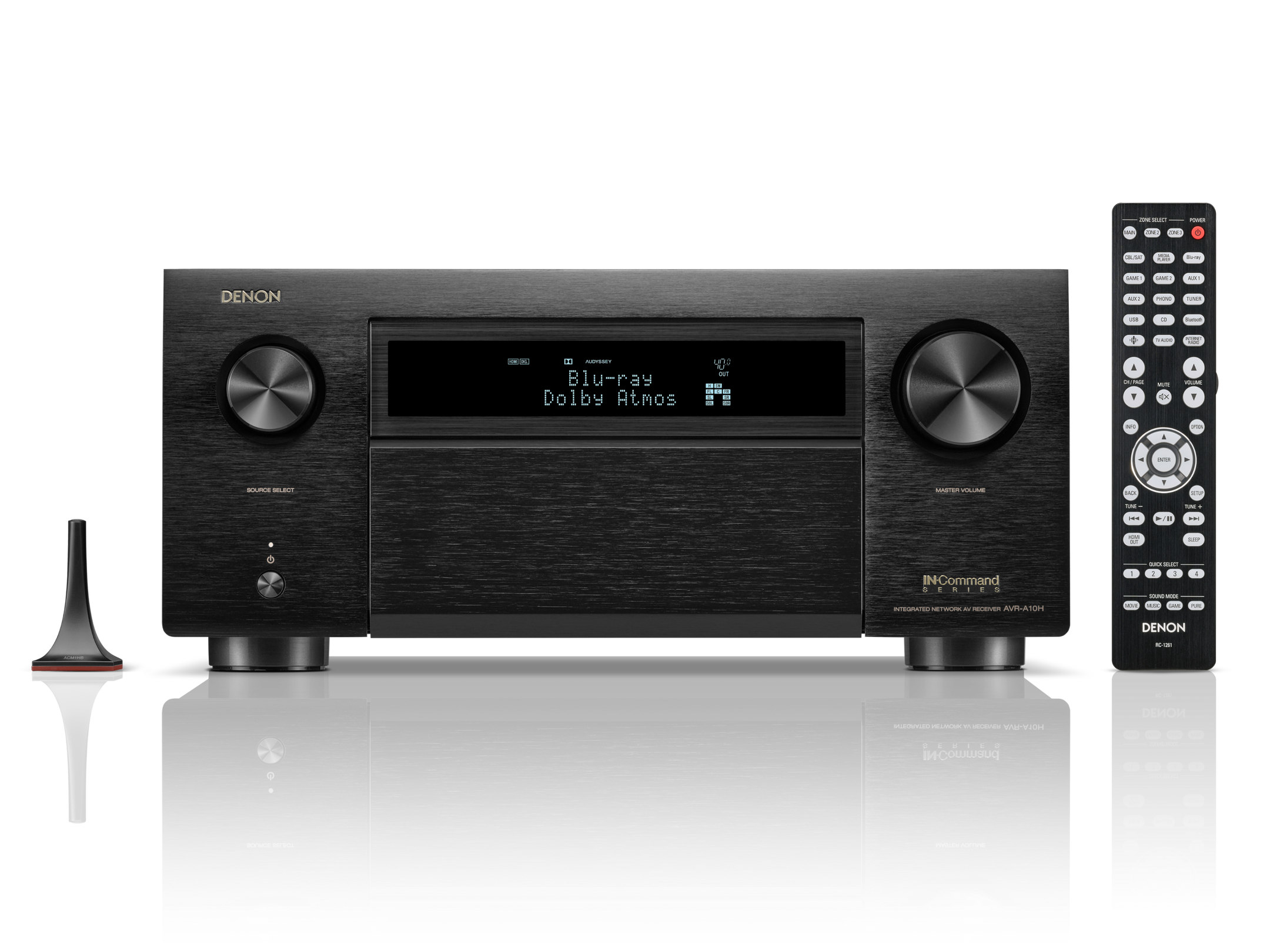

System Remote Control RC-1261
Power Consumption in W 900W
Power Consumption No-Sound
(ECO on/off) in W 70W/125W
Standby Consumption in W 0.1W
CEC Standby Consumption in W 0.5W
Network Standby
Consumption in W Less than 2.0W
Maximum Dimensions
Antenna, Horizontal:
(W × D × H) in mm
Antenna, Vertical:
(W × D × H) in mm
w/o Antenna:
(W × D × H) in mm
434 × 482 × 195
434 × 482 × 259
434 × 472 × 195
Weight in kg/lbs 23.6 kg / 52 lbs
Weight in kg/lbs (Packaging) 27.6 kg / 61 lbs
